Lsailt Android Carplay Multimedia Video Interface for 2014-2019 Cadillac ATS CUE System
| Android Configuration |
| Resolution |
800X480 |
| Display |
LVDS Digital(Latest chip) |
| SYSTEM: |
Android OS10 |
| RAM: |
4GB |
| EMMC: |
64GB |
| CPU MODEL |
Dual-core ARM Cortex-A72 1.8GHz and Quad-core ARM Cortex-A53 1.4GHz RK3399 |
| WIFI: |
2.4 / 5Ghz |
| BT: |
BT5.0 Support calls and music and OBD date |
| CP / AA |
Wireless and Wired |
| Mirrorlink |
Wireless and Wired |
| HiCar |
YES |
| Play Store: |
Yes |
| GPS |
UBLOX GPS Module |
| DSP |
256 DSP chip, with 16 period of EQ of DSP chip, the adjustable emperor, etc |
| Split Screen |
Support |
| UI Choose |
5 sets for optional |
| Hardware Configuration |
| TF Card : |
Maximum support 64GB (Product not include TF Card) |
| Navi Sound |
Addsmall speakers. If don’t listen radio, navi sound from original car speakers. |
| AV IN: |
DTV |
| HD-MI OUT: |
Support 720P |
| Camera/ AHD: |
4 CAMinput(guideline and radar ) |
| Reversing DET |
Gray REAR-C |
| USB Port |
3 ways
USB:CP and Update OS
USB1 / USB2 : ADAS and Media Player
|
| GPS Module |
GPS and Beidou dual-mode GPS (BDS/UBLOX) |
| Special Function |
| MCU and APP Update: |
Online upgrade via WIFI |
| Cold start Time: |
30 seconds |
| Hot Start: |
6 seconds |
| Sleep: |
(Cycle 5 times and restart once) |
| Sleep memory |
Remember Last APP in parking |
| Installation Method |
Plug and Play |
| Multimedia Control |
| Microphone: |
Use OEM |
| Steering Wheel: |
Support up and down song, Vol DisPlay |
| Forced Reset |
MODE Button(Long press 5 seconds) |
| OEMBT in Android: |
Automatically return to the OEM BT screen |
| A/C DISP |
Support in the Android interface display |
| Speed Control: |
Adding camera is effective below 20KM |

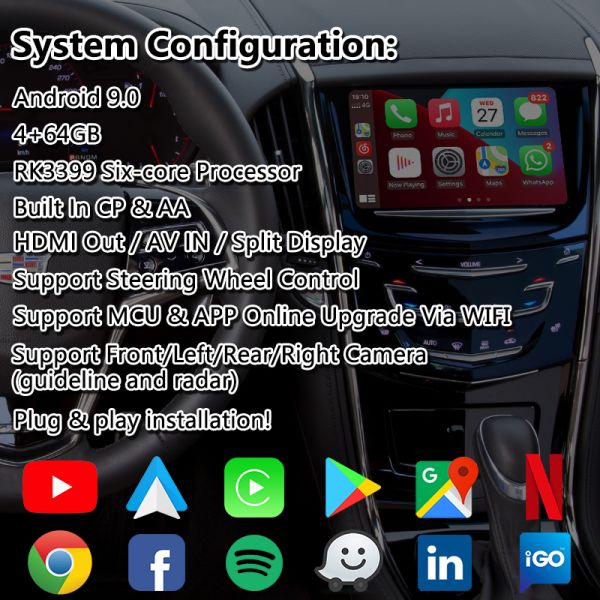

Functions:
CPU: PX6 RK3399 (Dual-core ARM Cortex-A72 1.8GHz and Quad-core ARM Cortex-A53 1.4GHz)
OS System: Android 10 (Shows Android 10 actual Android 9)
Play Store / YouTube: Yes
Split-screen: Support
TF Card Slot: Maximum support 64GB (Product not include TF Card)
Navi Sound: Need add small speaker
Microphone: Use original car
Steering wheel controls: Support
Support AC display on Android interface
Pin to pin installation.
Support HDMI signal output.

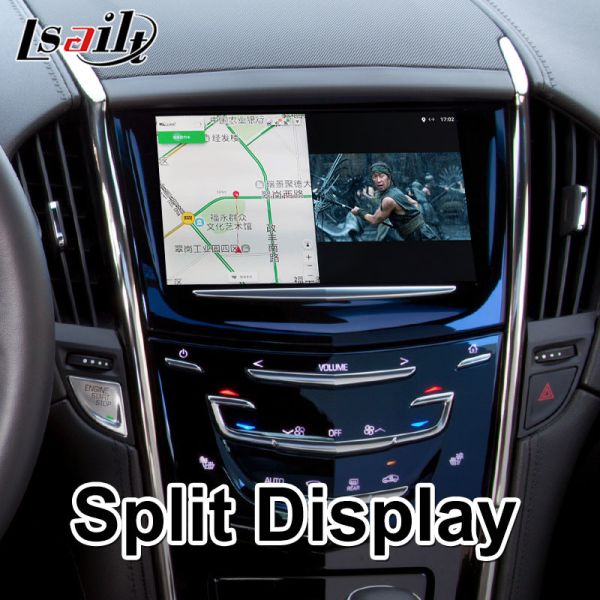

Split display and picture in picture is supported.
Questions and Answer:
Is this device compatible with my original camera and 360 camera?
It can compatible with original car rear camera and 360 camera. And also have video inputs for add reverse camera,and 360 panorama cameras.
How about the warranty of the product?
If there is any quality issue, it support 1 year for repair.
Does this android interface can support my car?
Please tell us your car in which year and which model? It will be better if you can send us some pictures of your original car radio menu and center screen for confirm.
